kuPolo | Matt

Custom Light Dome Design

kuPolo | Matt is a handcrafted, custom lighting platform that allows you to create high-performance, flicker-free, decorative domes. Available in 4 diameters – from 550mm up to 1150mm.

Design your bespoke lighting fixture by selecting your preferred ring colour/finish, to match your dome colour and light guide etch-design.

Select your LED-colour or opt for Tuneable White if you want to vary the LED colour according to your requirements.

Dimensions

Colours & Finishes

'It's Your Play'

Browse the below images to get inspired for your custom kuPolo | Matt luminaire!

Etch - Designs

Etch - Designs

Create a one-of-a-kind Light-Guide for your custom kuPolo luminaire!

Light Options

kuPolo offers a full spectrum of LED colour options.

Standard – 24V Tuneable White

As a standard, we offer Tuneable White in 24V. With a range between 2200K (Candlelight Warm) to 5000K (daylight), the desired atmosphere in any space can be created. Supports the creation of Human Centric Lighting scenarios including Circadian Lighting, Dim to Warm scenes and many other control options that enhance the comfort and well-being of individuals. Both Dali and Casambi. Depending on the size, between 6,000 – 13,500 lumen of comfortable diffused light is delivered.

High Output Option – 48V Tuneable or Single White

For larger spaces that require even higher light outputs – atrium, circulation spaces, churches, etc – aKupolo is available in a 48V system. Available in Tuneable White 2200-6500K, and in Single White 2700K, 3000K, 4000K and 5000K. Full suite of control options in Dali or Casambi. With our 48V system, light outputs between 11,000 – 24,000 lumen can be realised.



CCT 550 Flux 750 Flux 950 Flux 1150 Flux
2200-5000K 6.094lm 8.551lm 11.007lm 13,467lm

Flux data based on standard dot design Light Guide. Flux may vary per Etch-Design and Dome Colour.
For more details: go to Lighting Data Sheet

CCT 550 Flux 750 Flux 950 Flux 1150 Flux
2200-6500K 11.411lm 15.557lm 19.711lm 23.851lm

Flux data based on standard dot design Light Guide. Flux may vary per Etch-Design and Dome Colour.
For more details: go to Lighting Data Sheet

CCT

Flux 550

Flux 750

Flux 950

Flux 1150

kuPolo – 2700K 6.554lm 8.936lm 11.322lm 13.700lm
kuPolo – 3000K 6.927lm 9,444lm 11.965lm 14.479lm
kuPolo – 4000K 7.448lm 10.155lm 12.866lm 15.568lm
kuPolo – 5000K 7.488lm 10.155lm 12.866lm 15.568lm
kuPolo – 6500K 7.488lm 10.155lm 12.866lm 15.568lm

Flux data based on standard dot design Light Guide. Flux may vary per Etch-Design and Dome Colour.
For more details: go to Lighting Data Sheet

Control Options

subtitle

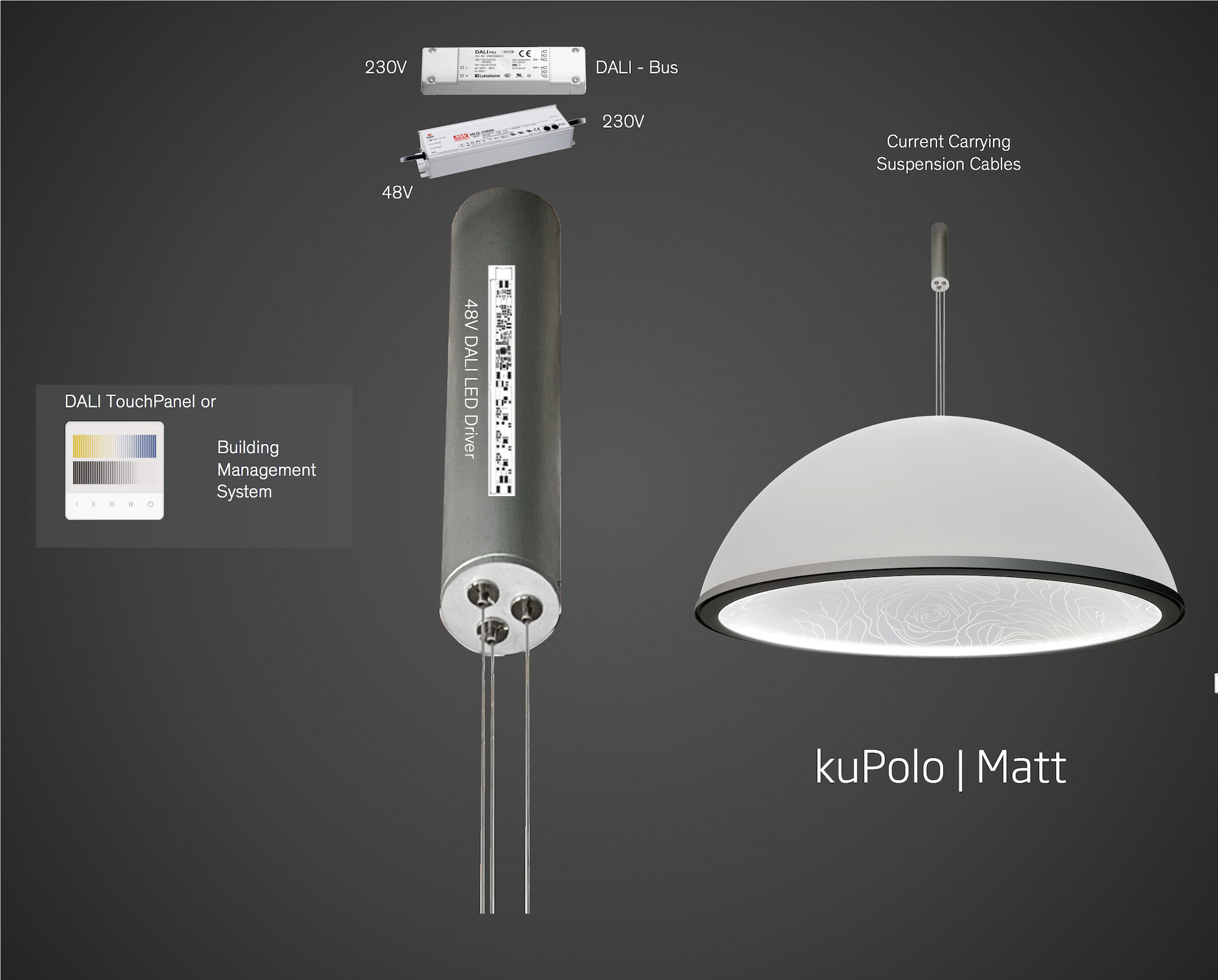

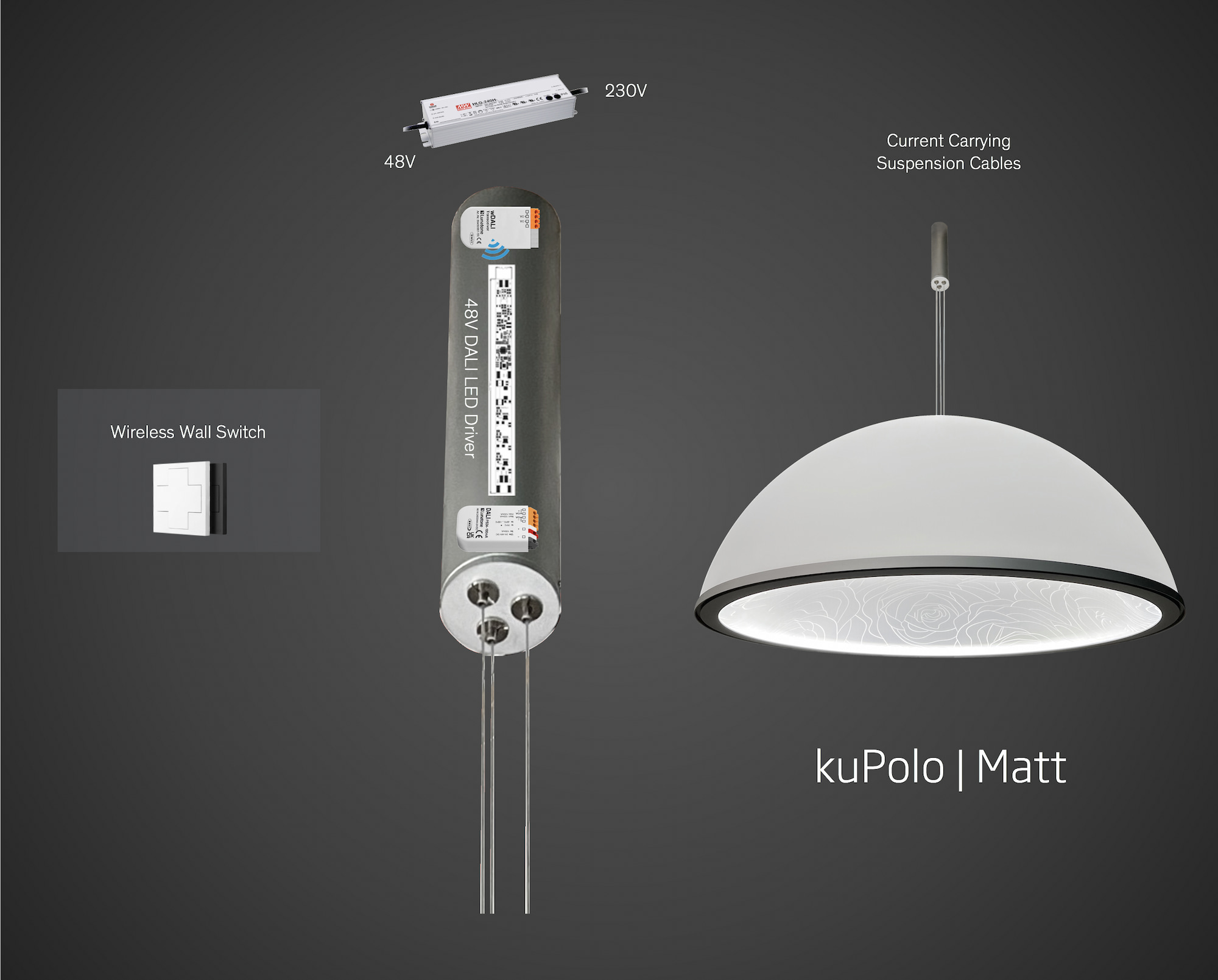

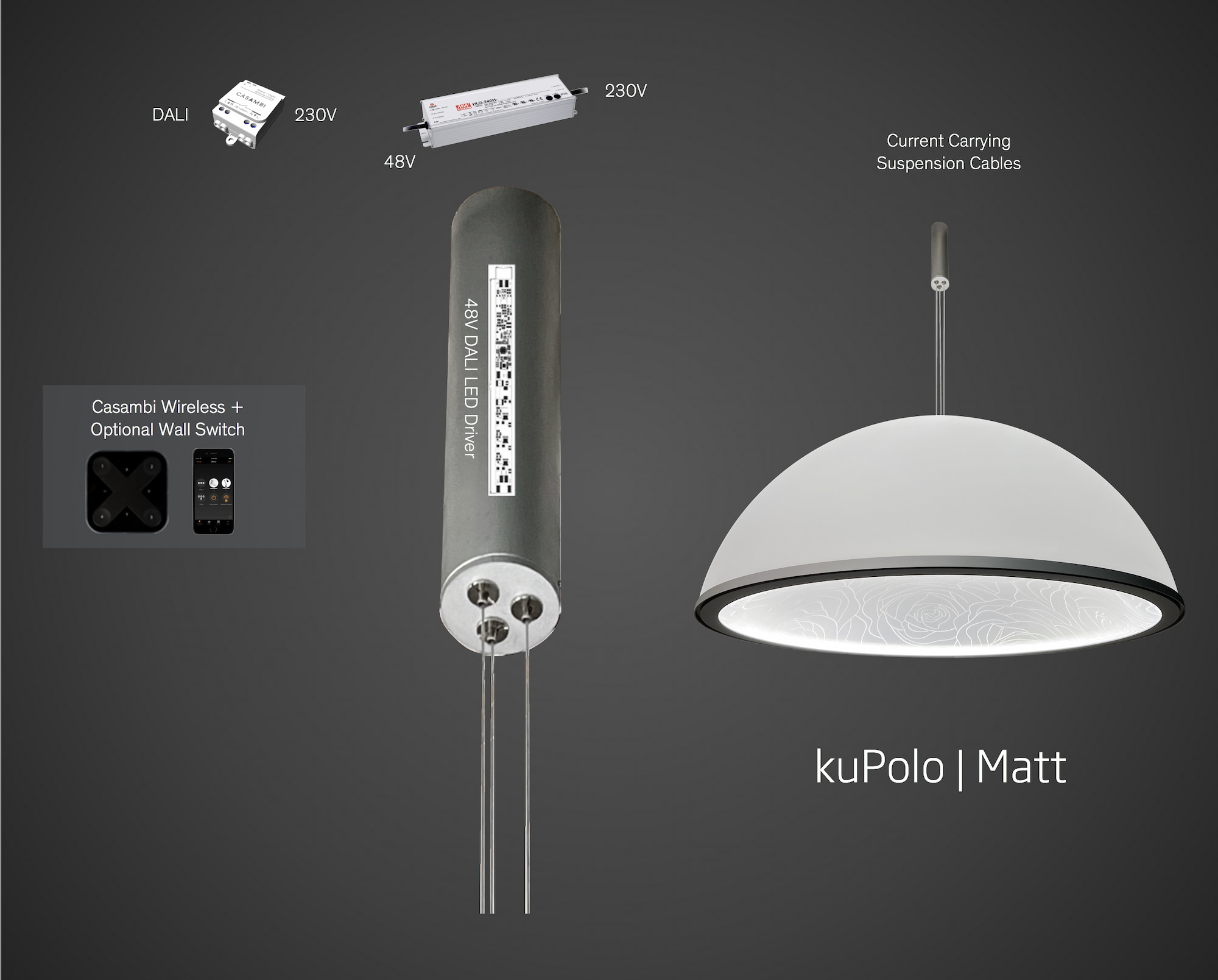

aKupolo light fixtures are controlled by a proprietary DALI 2 LED Driver. Multiple standard control options are available including:

kuPolo | Matt 950 Rose/WhiteMatt/AluMatt Seating Area
download
kuPolo | Matt 950 Rose/White/AluMatt - Living Room
download
kuPolo | Matt 750 Mikado/GreyMatt/Silver - Hotel Room
download
kuPolo | Matt 950 Rose/White/AluMatt - Hotel Room
download
kuPolo | Matt 750 Mikado/GreyMatt/Silver - Table Set
download
kuPolo | Matt 950 Rose/WhiteMatt/AluMatt - Double Room
download
kuPolo | Matt Mikado/BlueGrey/Silver serie
download
kuPolo | Matt 950 Rose/White/AluMatt
download
kuPolo | Matt 950 Rose/WhiteMatt/Alumatt Side-by-Side
download

Technical Data & Downloads

kuPolo Brochure

kuPolo-Brochure-HR.pdf

Lighting Data Sheet | kuPolo

Lighting-Data-Sheet-kuPolo-1.pdf

Product Data Sheet – kuPolo | Matt

kuPolo-Matt-Technical-Data-Sheet.pdf
View all downloads east
